Themes and Styles
Themes
A theme specifies the look of VNote, the style of the editor and read mode, and the syntax highlight style of code block.
A theme corresponds to a folder in the themes subfolder in the configuration folder with structure:
themes/
├── v_pure
│ ├── arrow_dropdown.svg
│ ├── branch_closed.svg
│ ├── branch_end.svg
│ ├── branch_more.svg
│ ├── branch_open.svg
│ ├── checkbox_checked.svg
│ ├── checkbox_unchecked.svg
│ ├── close_grey.svg
│ ├── close.svg
│ ├── down_disabled.svg
│ ├── down.svg
│ ├── float.svg
│ ├── left_disabled.svg
│ ├── left.svg
│ ├── line.svg
│ ├── menu_checkbox.svg
│ ├── menu_radiobutton.svg
│ ├── radiobutton_checked.svg
│ ├── radiobutton_unchecked.svg
│ ├── right_disabled.svg
│ ├── right.svg
│ ├── up_disabled.svg
│ ├── up.svg
│ ├── v_pure_codeblock.css
│ ├── v_pure.css
│ ├── v_pure.mdhl
│ ├── v_pure.palette
│ └── v_pure.qss
v_pure.palette: the main entry of a theme, which specifies other files and styles;v_pure.qss: file for Qt Style Sheet, which specifies the look of all the widgets;v_pure.mdhl: file for the style of Markdown editor, using The Syntax of PEG Markdown Highlight Stylesheets;v_pure.css: file for the style of read mode;v_pure_codeblock.css: file for the style of the code block highlight in read mode, using Highlight.js;
Palette of Theme
Let's look into the .palette file. The file is in INI format.
[metadata]
This section specifies other style files this theme will use.
; File path could be absolute path or relative path (related to this file).
; Use @color_tag to reference a style.
[metadata]
qss_file=v_pure.qss
mdhl_file=v_pure.mdhl
css_file=v_pure.css
codeblock_css_file=v_pure_codeblock.css
version=2
[phony]
This section is used to define variables for fundamental, abstract color attributes. A variable could be referenced by @variable_name to define another variable.
These variables are referenced by other sections, so you are free to choose and define your own ones.
[phony]
; Abstract color attributes.
master_fg=#F5F5F5
master_bg=#00897B
master_light_bg=#80CBC4
master_dark_bg=#00796B
master_focus_bg=#009688
master_hover_bg=#009688
master_pressed_bg=#00796B
base_fg=#222222
base_bg=#EAEAEA
main_fg=@base_fg
main_bg=@base_bg
title_fg=@base_fg
title_bg=@base_bg
disabled_fg=#9E9E9E
content_fg=@base_fg
content_bg=@base_bg
border_bg=#D3D3D3
separator_bg=#D3D3D3
hover_fg=@base_fg
hover_bg=#D0D0D0
selected_fg=@base_fg
selected_bg=#BDBDBD
active_fg=@selected_fg
active_bg=@selected_bg
inactive_fg=@selected_fg
inactive_bg=#D3D3D3
focus_fg=@selected_fg
focus_bg=@selected_bg
pressed_fg=@base_fg
pressed_bg=#B2B2B2
edit_fg=#222222
edit_bg=#F5F5F5
edit_focus_bg=#E0F2F1
edit_focus_border=@master_bg
edit_selection_fg=@edit_fg
edit_selection_bg=@master_light_bg
icon_fg=#222222
icon_disabled_fg=@disabled_fg
danger_fg=#F5F5F5
danger_bg=#C9302C
danger_focus_bg=#D9534F
danger_hover_bg=#D9534F
danger_pressed_bg=#AC2925
[soft_defined]
This section define variables which will be used by VNote code. You MUST define these variables to make VNote looks right.
[soft_defined]
; VAvatar.
; The foreground color of the avatar when Captain mode is triggered.
avatar_captain_mode_fg=@master_fg
; The background color of the avatar when Captain mode is triggered.
avatar_captain_mode_bg=@master_bg
; Style of the label in Navigation mode.
navigation_label_fg=@master_fg
navigation_label_bg=@master_bg
; Style of the bubble of VButtonWithWidget.
bubble_fg=@master_fg
bubble_bg=@master_bg
; Icons' foreground.
danger_icon_fg=@danger_bg
item_icon_fg=@icon_fg
title_icon_fg=@icon_fg
; VVimIndicator.
vim_indicator_key_label_fg=@base_fg
vim_indicator_mode_label_fg=@base_fg
vim_indicator_cmd_edit_pending_bg=@selected_bg
; VTabIndicator.
tab_indicator_label_fg=@base_fg
; Html template.
template_title_flash_light_fg=@master_light_bg
template_title_flash_dark_fg=@master_bg
; Search hit items in list or tree view.
search_hit_item_fg=@selected_fg
search_hit_item_bg=@master_light_bg
[widgets]
This section defines variables to be used in qss file to define concrete style of different widgets. They are referenced by the qss file.
[widgets]
; Widget color attributes.
; QWidget.
widget_fg=@base_fg
; Separator of dock widgets.
dock_separator_bg=@border_bg
dock_separator_hover_bg=@border_bg
; Menubar.
menubar_bg=@main_bg
menubar_fg=@main_fg
menubar_item_selected_bg=@selected_bg
; Menu.
menu_bg=@base_bg
menu_fg=@base_fg
menu_item_disabled_fg=@disabled_fg
menu_item_selected_fg=@selected_fg
menu_item_selected_bg=@selected_bg
menu_separator_bg=@separator_bg
menu_icon_fg=@icon_fg
menu_icon_danger_fg=@danger_icon_fg
The qss file may look like this if you are curious:
/* QWidget */
QWidget
{
color: @widget_fg;
font-family: "Hiragino Sans GB", "冬青黑体", "Microsoft YaHei", "微软雅黑", "Microsoft YaHei UI", "WenQuanYi Micro Hei", "文泉驿雅黑", "Dengxian", "等线体", "STXihei", "华文细黑", "Liberation Sans", "Droid Sans", "NSimSun", "新宋体", "SimSun", "宋体", "Helvetica", "sans-serif", "Tahoma", "Arial", "Verdana", "Geneva", "Georgia", "Times New Roman";
}
QWidget[NotebookPanel="true"] {
padding-left: 3px;
}
/* End QWidget */
/* QMainWindow */
QMainWindow {
color: @base_fg;
background: @base_bg;
}
QMainWindow::separator {
background: @dock_separator_bg;
width: 2px;
height: 2px;
}
QMainWindow::separator:hover {
background: @dock_separator_hover_bg;
}
/* End QMainWindow */
QMenuBar {
border: none;
background: @menubar_bg;
color: @menubar_fg;
}
QMenuBar::item:selected {
background: @menubar_item_selected_bg;
}
Custom Themes
VNote supports custom themes. Just place your theme (folder) to the themes folder, restart VNote and choose your theme in the File menu.
The best way to custom a theme is tuning a defaut theme. VNote will output default themes in the themes folder (or if not, you could download it here). Copy a default theme and rename the palette file. Then you could tune it to your taste. Restart of VNote is needed to let the changes take effect.

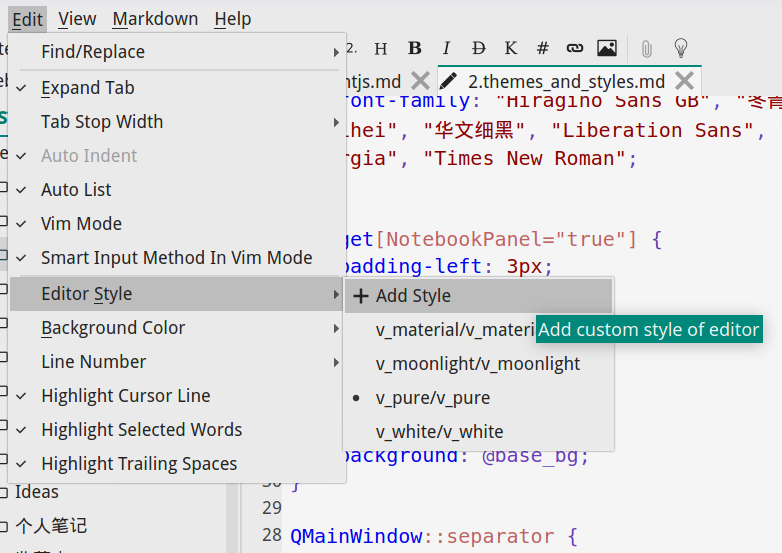

Editor Styles
Editor style is specified by a mdhl file. Each theme may carry a mdhl file. You could also apply another mdhl file instead of using the default one specified by the theme. Separate style file could be placed in the styles folder in the configuration folder. Restart of VNote is needed to scan new mdhl files and re-open of notes is needed to apply new style.
Syntax of MDHL File
The mdhl file adopts the The Syntax of PEG Markdown Highlight Stylesheets and expands it to support more elements.
# This is the default markdown styles used for Peg-Markdown-Highlight
# created by Le Tan(tamlokveer@gmail.com).
# For a complete description of the syntax, please refer to the original
# documentation of the style parser
# [The Syntax of PEG Markdown Highlight Stylesheets](http://hasseg.org/peg-markdown-highlight/docs/stylesheet_syntax.html).
# VNote adds some styles in the syntax which will be marked [VNote] in the comment.
#
# Note: Empty lines within a section is NOT allowed.
# Note: Do NOT modify this file directly. Copy it and tune your own style!
editor
# QTextEdit just choose the first available font, so specify the Chinese fonts first
# Do not use "" to quote the name
font-family: Hiragino Sans GB, 冬青黑体, Microsoft YaHei, 微软雅黑, Microsoft YaHei UI, WenQuanYi Micro Hei, 文泉驿雅黑, Dengxian, 等线体, STXihei, 华文细黑, Liberation Sans, Droid Sans, NSimSun, 新宋体, SimSun, 宋体, Helvetica, sans-serif, Tahoma, Arial, Verdana, Geneva, Georgia, Times New Roman
font-size: 12
foreground: 222222
background: f5f5f5
# [VNote] Style for trailing space
trailing-space: a8a8a8
# [VNote] Style for line number
line-number-background: eaeaea
line-number-foreground: 424242
# [VNote] Style for selected word highlight
selected-word-foreground: 222222
selected-word-background: dfdf00
# [VNote] Style for searched word highlight
searched-word-foreground: 222222
searched-word-background: 4db6ac
# [VNote] Style for searched word under cursor highlight
searched-word-cursor-foreground: 222222
searched-word-cursor-background: 66bb6a
# [VNote] Style for incremental searched word highlight
incremental-searched-word-foreground: 222222
incremental-searched-word-background: ce93d8
# [VNote] Style for color column in fenced code block
color-column-background: dd0000
color-column-foreground: ffff00
# [VNote} Style for preview image line
preview-image-line-foreground: 9575cd
editor-selection
foreground: eeeeee
background: 005fff
editor-current-line
background: c5cae9
# [VNote] Vim insert mode cursor line background
vim-insert-background: c5cae9
# [VNote] Vim normal mode cursor line background
vim-normal-background: e0e0e0
# [VNote] Vim visual mode cursor line background
vim-visual-background: bbdefb
# [VNote] Vim replace mode cursor line background
vim-replace-background: f8bbd0
H1
foreground: 222222
font-style: bold
font-size: +8
VERBATIM
foreground: 673ab7
font-family: Consolas, Monaco, Andale Mono, Monospace, Courier New
# [VNote] Codeblock sylte from HighlightJS (bold, italic, underlined, color)
# The last occurence of the same attribute takes effect
# Could specify multiple attribute in one line
hljs-comment: 6c6c6c
hljs-keyword: 0000ee
hljs-attribute: 0000ee
hljs-selector-tag: 0000ee
hljs-meta-keyword: 0000ee
hljs-doctag: 0000ee
hljs-name: 0000ee
hljs-type: 880000
hljs-string: 880000
hljs-number: 880000
hljs-selector-id: 880000
hljs-selector-class: 880000
hljs-quote: 880000
hljs-template-tag: 880000
hljs-deletion: 880000
hljs-title: bold, 880000
hljs-section: bold, 880000
hljs-regexp: bc6060
hljs-symbol: bc6060
hljs-variable: bc6060
hljs-template-variable: bc6060
hljs-link: bc6060
hljs-selector-attr: bc6060
hljs-selector-pseudo: bc6060
hljs-literal: af00d7
hljs-built_in: 008700
hljs-bullet: 008700
hljs-code: 008700
hljs-addition: 008700
hljs-meta: 1f7199
hljs-meta-string: 4d99bf
hljs-emphasis: italic
hljs-strong: bold
The syntax highlight of the code blocks in edit mode is specified by the VERBATIM element.
For example, if you want to change the font size of the code block in edit mode, you may need to add the following line under VERBATIM element:
font-size: -2

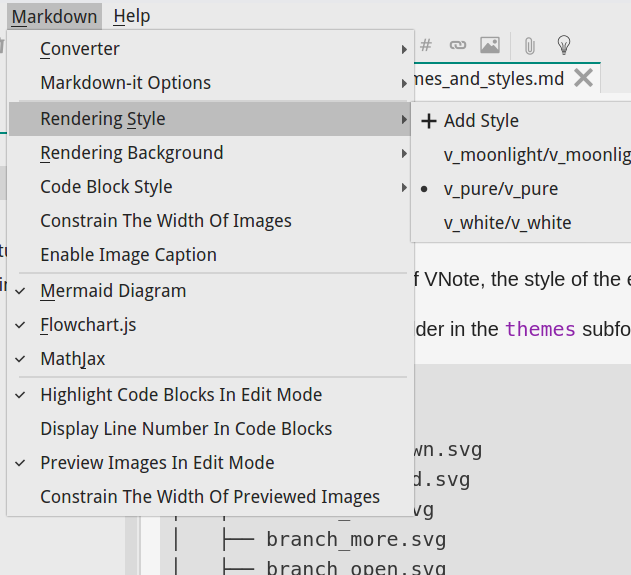

Rendering Styles
Rendering style in read mode is specified by a css file. Each theme may carry a css file. You could also apply another css file instead of using the default one specified by the theme. Separate style file could be placed in the styles folder in the configuration folder. Restart of VNote is needed to scan new css files and re-open of notes is needed to apply new style.
Code Block Rendering Styles
Rendering style in read mode is specified by a css file. Each theme may carry a css file. You could also apply another css file instead of using the default one specified by the theme. Separate style file could be placed in the styles/codeblock_styles folder in the configuration folder. Restart of VNote is needed to scan new css files and re-open of notes is needed to apply new style.
This file is used by the highlight.js renderer engine. You could download existing style files from Highlight.js Github.
