vnote/en_us/docs/Users/Themes and Styles.md

Themes and Styles

Themes

A theme specifies the look of VNote, the style of the editor and read mode, and the syntax highlight style of code block.

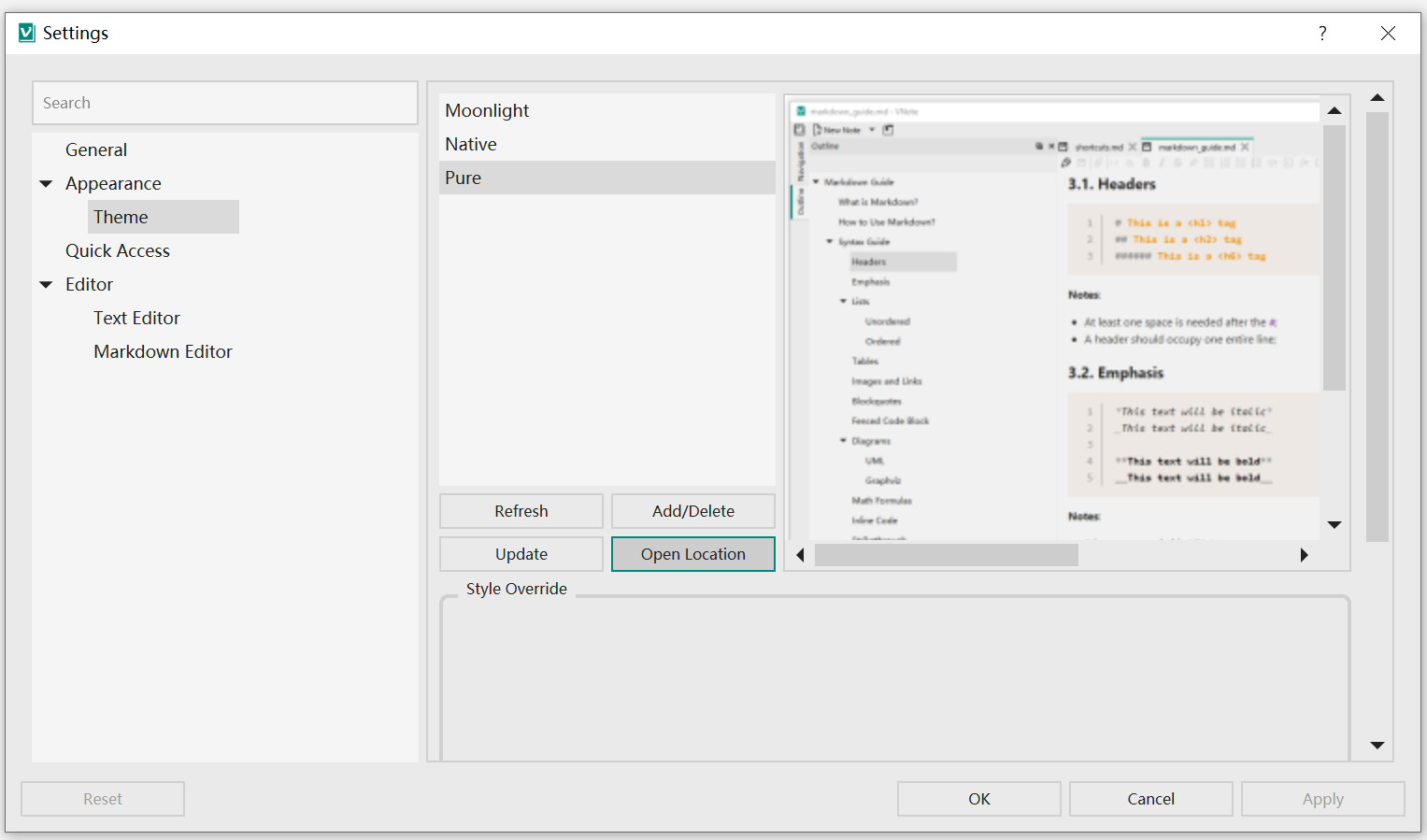

A theme corresponds to a folder in the themes folder. You could change and manage themes in the Settings dialog.

How to Add A Theme

It is a good practice to start a custom theme based on an existing theme. Copy the folder of your favorite theme and paste it into the themes folder under user configuration folder. Remember to rename the folder.

Components of A Theme

Some key files of a theme:

• palette.json: the palette of a theme which defines several colors to be used in the theme;
• interface.qss: file for Qt Style Sheet, which specifies the look of all the widgets; it will use the colors defined by palette.json;
• text-editor.theme: theme file of the text editor (as well as Markdown editor);
• web.css: style sheet file of the read mode of Markdown;
• highlight.css: style sheet file of the read mode of Markdown for code block syntax highlight; VNote uses Prism for syntax highlight in read mode;
• icons: folder for customized icons (optional);

Samples

Customize Editor Fonts

Read Mode

For the font in read mode, it is specified in web.css by the font-family and font-size.

Styles of the body:

body {
    margin: 0 auto;
    font-family: -apple-system, "Noto Sans", "Helvetica Neue", "Segoe UI", Helvetica, sans-serif, Tahoma, Arial, Geneva, Georgia, Palatino, "Times New Roman", "冬青黑体", "YaHei Consolas Hybrid", "Microsoft YaHei", "微软雅黑", "Microsoft YaHei UI", "WenQuanYi Micro Hei", "文泉驿雅黑", Dengxian, "等线体", STXihei, "华文细黑", "Liberation Sans", "Droid Sans", NSimSun, "新宋体", SimSun, "宋体", "Apple Color Emoji", "Segoe UI Emoji";
    color: #222222;
    line-height: 1.5;
    padding: 16px;
    background-color: #f5f5f5;
    font-size: 16px;
}

Styles of the code blocks and inline code:

code {
    font-family: "YaHei Consolas Hybrid", Consolas, Monaco, Monospace, Courier;
    color: #8e24aa;
    word-break: break-word;
}

pre code {
    display: block;
    padding-left: 0.5em;
    padding-right: 0.5em;
    color: #222222;
    background-color: #e0e0e0;
    line-height: 1.5;
    font-family: "YaHei Consolas Hybrid", Consolas, Monaco, Monospace, Courier;
    white-space: pre;
    -moz-tab-size: 4;
    -o-tab-size: 4;
    tab-size: 4;
}

For code blocks with syntax highlight, styles are defined in highlight.css:

code[class*="language-"],
pre[class*="language-"] {
    color: black;
    background: none;
    font-family: Consolas, Monaco, 'Andale Mono', 'Ubuntu Mono', monospace;
    font-size: 1em;
    text-align: left;
    white-space: pre;
    word-spacing: normal;
    word-break: normal;
    word-wrap: normal;
    line-height: 1.5;

    -moz-tab-size: 4;
    -o-tab-size: 4;
    tab-size: 4;

    -webkit-hyphens: none;
    -moz-hyphens: none;
    -ms-hyphens: none;
    hyphens: none;
}

Text Editor and Markdown Editor

For the font of text editor and Markdown editor, it is specified in text-editor.theme file.

Text editor:

{
    "editor-styles" : {
        "Text" : {
            "//comment" : "Support a list of fonts separated by ,",
            "font-family" : "YaHei Consolas Hybrid, Consolas, Monaco, Andale Mono, Monospace, Courier New",
            "font-size" : 12,
            "text-color" : "#222222",
            "background-color" : "#f5f5f5",
            "selected-text-color" : "#f5f5f5",
            "selected-background-color" : "#1976d2"
        }
    }
}

Markdown editor:

{
    "markdown-editor-styles" : {
        "Text" : {
            "//comment" : "Support a list of fonts separated by ,",
            "font-family" : "冬青黑体, YaHei Consolas Hybrid, Microsoft YaHei, 微软雅黑, Microsoft YaHei UI, WenQuanYi Micro Hei, 文泉驿雅黑, Dengxian, 等线体, STXihei, 华文细黑, Liberation Sans, Droid Sans, NSimSun, 新宋体, SimSun, 宋体, Verdana, Helvetica, sans-serif, Tahoma, Arial, Geneva, Georgia, Times New Roman",
            "font-size" : 12,
            "text-color" : "#222222",
            "background-color" : "#f5f5f5",
            "selected-text-color" : "#f5f5f5",
            "selected-background-color" : "#1976d2"
        }
    }
}

Customize Interface Fonts

We need to edit interface.qss to customize the fonts of interface, such as the menu and the navigation tree.

Qt docs provides many detailed examples about the Qt stylesheet.

Change the font size of all the widgets:

QWidget {
    font-size: 12pt;
}

Change the font size of all the tree view and list view:

QTreeView, QListView {
    font-size: 12pt;
}

Change the font size of the notebook node explorer:

vnotex--NotebookNodeExplorer QTreeView {
    font-size: 14pt;
}

Customize Icons

Customizing the icons used in VNote is supported by putting all related icon files in the folder icons within a theme.

For a complete list of file names of the icons, please check icons.

A sample directory structure:

.
├── cover.png
├── highlight.css
├── icons
│   ├── ***.svg
│   ├── ***.svg
│   └── ***.svg
├── interface.qss
├── palette.json
├── text-editor.theme
└── web.css

Some common icons:

Notes

Name	Explain
folder_node.svg	Folder of nodes
file_node.svg	Nodes

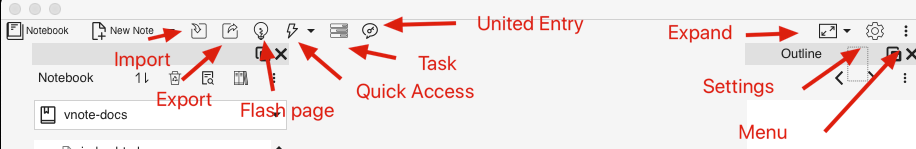

Top Menu Bar

Name	Explain
notebook_menu.svg	Notebook
new_note.svg	New Note
import_menu.svg	Import
export_menu.svg	Export
flash_page_menu.svg	Flash Page
quick_access_menu.svg	Quick Access
task_menu.svg	Task
united_entry.svg	United Entry
expand.svg	Expand Content Area
settings_menu.svg	Settings
menu.svg	Menu

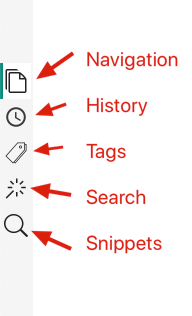

Left Navigation Bar

Name	Explain
navigation_dock.svg	Navigation
history_dock.svg	History
tag_dock.svg	Tags
search_dock.svg	Search
snippet_dock.svg	Snippets

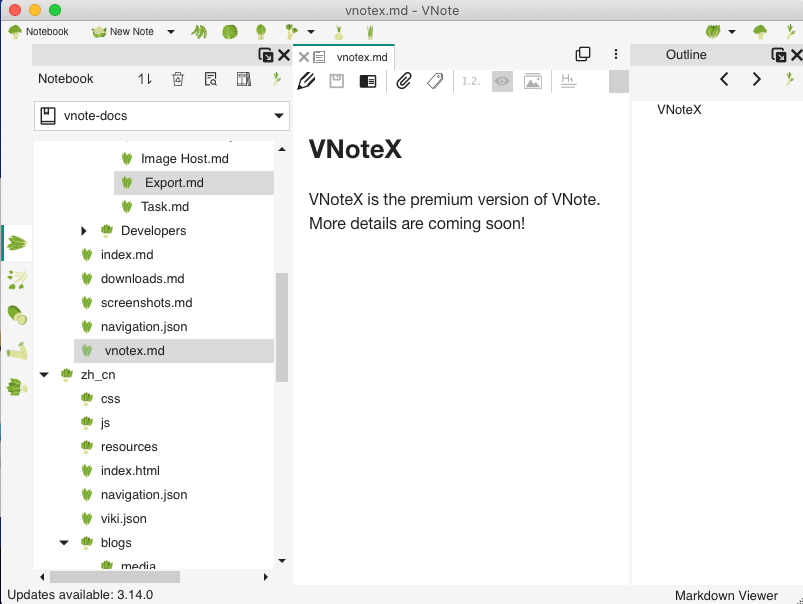

An example theme:
