Task

VNote supports a simple task system like VSCode Tasks, which enables executing third-party programs easily.

Loading Tasks

VNote will try to load tasks from three locations:

• default_config_folder/tasks for built-in tasks
• user_config_folder/tasks for user-defined tasks
• notebook_config_folder/tasks for tasks defined by this notebook

A task is defined by a *.json entry file.

A Simple Task

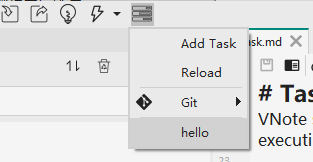

Click the Add Task item on the task menu, which will open the user-defined tasks folder.

New a folder named hello and under it create a file named hello.json. Edit the JSON file as:

{
    "command": "echo 'Hello Tasks'"
}

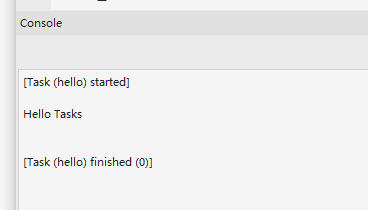

Reload tasks in the menu and we could see that a new task named hello is listed on the menu. Click it to run the task.

Customize Menu Item

{
    "label": "Hello",
    "icon": "tasks-solid.svg",
    "shortcut": "Alt+H, T",
    "command": "echo",
    "args": [
        "Hello tasks!"
    ]
}

The icon file tasks-solid.svg should be saved alongside the JSON entry file.

Sub-Tasks

Tasks could be embedded infinitely. Sub-tasks will inherit most properties from parent.

{
    "label": "Hello Tasks",
    "icon": "tasks-solid.svg",
    "shortcut": "Alt+H, T",
    "command": "echo",
    "args": ["Hello tasks!"],
    "tasks": [
        {
            "label": "Hello Cat",
            "icon": "cat-solid.svg",
            "shortcut": "Alt+H, C",
            "args": ["Hello cat!"]
        },
        {
            "label": "Hello Dove",
            "icon": "dove-solid.svg",
            "shortcut": "Alt+H, D",
            "args": ["Hello dove!"]
        },
        {
            "label": "Hello Fish",
            "icon": "fish-solid.svg",
            "shortcut": "Alt+H, F",
            "args": ["Hello fish!"]
        }
    ]
}

Command Types

The type property of one task defines how the command will be executed.

• shell: Default， will run the command as a shell command
• process: Will run the command as a standalone program

{
    "type": "process",
    "label": "Open File with",
    "args": ["${buffer}"],
    "tasks": [
        {
            "label": "Typora",
            "icon": "Typora.svg",
            "command": "C:\\Programs\\Typora0.9.98\\x64\\Typora.exe"
        },
        {
            "label": "VS Code",
            "icon": "vscode.svg",
            "command": "C:\\Users\\tootal\\AppData\\Local\\Programs\\Microsoft VS Code\\Code.exe"
        }
    ]
}

::: alert-info

Yep, tootal is the contributor who initiated the Task system of VNote!

:::

VNote does not provide a terminal. We may need to use start or gnome-terminal or konsole to run some programs in terminal.

{
    "label": "Vim",
    "icon": "vim.svg",
    "type": "process",
    "command": "gnome-terminal",
    "args": [
        "--execute",
        "vim",
        "${buffer}"
    ]
}

Localization and Platform-Specific Options

Provide a locale string JSON object to provide localization.

{
    "label": {
        "en_US": "Hello",
        "zh_CN": "你好"
    }
}

We could use windows/linux/osx keyword to specify options for different platforms.

{
    "type": "process",
    "label": "Open File with",
    "args": ["${buffer}"],
    "tasks": [
        {
            "label": "Typora",
            "icon": "Typora.svg",
            "windows": {
                "command": "C:\\Programs\\Typora0.9.98\\x64\\Typora.exe"
            },
            "linux": {
                "command": "/usr/bin/typora"
            }
        },
        {
            "label": "VS Code",
            "icon": "vscode.svg",
            "windows": {
                "command": "C:\\Users\\tootal\\AppData\\Local\\Programs\\Microsoft VS Code\\Code.exe"
            },
            "linux": {
                "command": "/usr/bin/code"
            }
        }
    ]
}

Task Options

A task could have several options, some of them are mandatory.

We will use [m] to mark the mandatory options, [l] to mark the options supporting localization.

• version: the version of the task file
• label[l]: the name of the task
• type: the type of task; shell(default)/process
• command[l]: the command to execute
• args[l]: the arguments passed to the command
• options: options for runnig task
  • cwd: current working directory to run task; will try current notebook root folder, then current buffer folder, and then current task file folder in order if missing
  • env: environment variables for running task
  • shell: options for tasks of shell type
    • executable: the shell executable file; Powershell.exe by default on Windows and /bin/bash by default on Linux/macOS
    • args: the arguments to start shell
• tasks: define sub-tasks
• inputs: define input variables
  • id[m]: ID of the input variable
  • type: promptString (default, prompt for user input) or pickString (prompt for user selection)
  • description[l]: description of the input variable
  • default[l]: default value
  • password: whether use password mode for promptString type
  • options[l]: options defined for pickString type
• windows: options for Windows system
• linux: options for Linux system
• osx: options for macOS system

Variables

A task could use variables provided by VNote in the form ${variableName}. Variables could provide useful information to the task when running.

Variables could be used in options command/args/options.cwd/options.env.

Built-In Variables

Notebook-related variables:

• notebookFolder: path of the notebook root folder
• notebookFolderName
• notebookName
• notebookDescription

Buffer-related variables:

• buffer: path of current buffer
• bufferNotebookFolder: path of the notebook root folder of the notebook of current buffer
• bufferRelativePath
• bufferName
• bufferBaseName
• bufferDir: folder of current buffer
• bufferExt: extension suffix of current buffer
• selectedText: selected text of current buffer view window

Task-related variables:

• cwd: current working directory
• taskFile: the path of the task entry file
• taskDir: the path of the directory containing the task entry file
• exeFile: the path of VNote executable file
• pathSeparator: the platform-dependent path separator
• notebookTaskFolder: the path of current notebook task folder
• userTaskFolder: the path of user task folder
• appTaskFolder: the path of default task folder
• userThemeFolder: the path of user theme folder
• appThemeFolder: the path of default theme folder
• userDocsFolder: the path of user docs folder
• appDocsFolder: the path of default docs folder

Other specifal variables:

• Call snippets of VNote via ${magic:snippet_name}
• Access environment variable via ${env:env_name}
• Access VNote's configurations via ${config:[main|session].json_object_path}
  • main for the main configurations from vnotex.json and session for the session configurations from session.json
  • Use arr[index] to access a JSON array
  • ${config:main.core.shortcuts.FullScreen} will get the shortcut of FullScreen

Input Variables

A task could use input variables to prompt for user inputs via ${input:input_id}.

There are now two types of input variables:

• promptString
• pickString

{
    "command": "echo",
    "args": ["${input:what}"],
    "inputs": [
        {
            "id": "what",
            "type": "promptString",
            "description": "Type something, it will show in output panel."
        }
    ]
}

Shell Variables

A task could execute a shell command and get its output via shell variables like ${shell:shell_command}.

• ${shell:git rev-parse --abbrev-ref HEAD} → master
• ${shell:whoami} → tootal
• ${shell:dig github.com -4 +short} → 52.69.186.44

Examples

There is a built-in task named Git which locates in the default configuration task folder.

Compile and run:

{
    "command": "g++ \"${buffer}\" -o \"${bufferBaseName}\"; if ($?) { start cmd \"/c `\"${bufferBaseName}`\" & pause\" }"
}

Run a HTTP server:

{
    "command": "start cmd.exe \"/c python -m http.server\" ; start http://localhost:8000"
}
